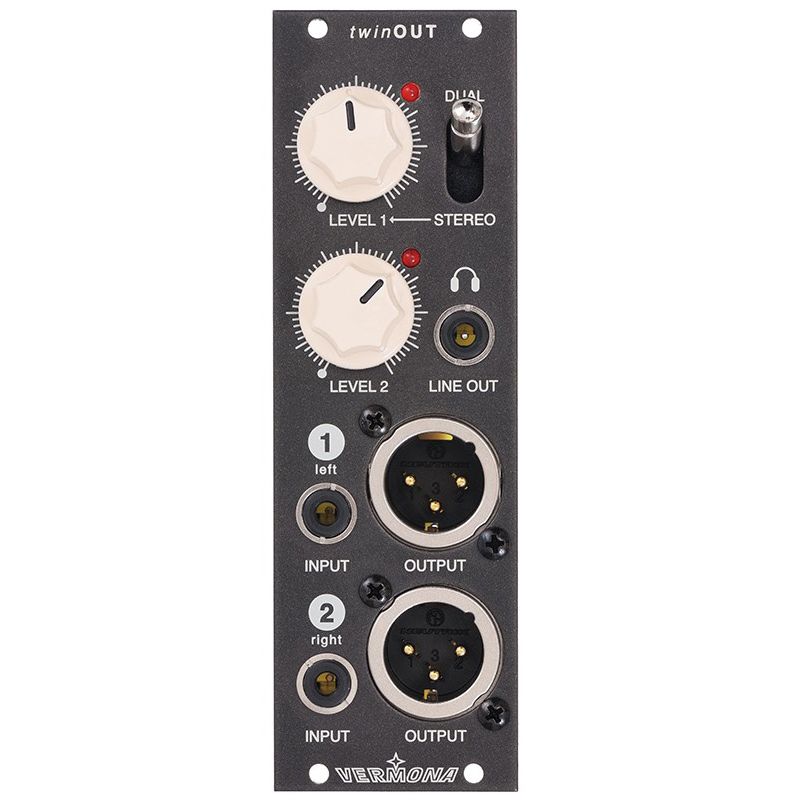

This DI-box in a module offers two adjustable, electronically balanced XLR-outputs for stereo or independent dual-mono use. An additional headphone output, also suited for line level output completes twinOUT’s feature-set. To bring out the best of your modular synthesizer, there’s no getting around the twinOUT! Just like every VERMONA module, each twinOUT is produced in Vermona’s « elektroakustische Manufaktur”.
Frequency Range: 20 Hz – 20 kHz (±0,2 dB)Signal-to-Noise ratio: > 90 dB
THD Noise: 0,01% Input
Nominal Input Level: 6 dBu
max. Input Level: 24 dBu
Input Impedance: 100 kΩ Outputs
max. Output Level: 24 dBu (XLR)
Output Impedance: 600 Ω
Amplification: 12 dB
CLIP LED 12 dBu (XLR) 6 dBu (TRS without damper) –4 dBu (TRS with damper)
Power Consumption:
12V: 25 mA
-12V: 25 mA
