Rotating Clock Divider (RCD)
The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.
Features
Divide-by-1 to Divide-by-64, on 8 output jacks
CV Rotate jack to shift divide-by amount on each jack
CV Reset jack to reset/re-sync all jacks
Optional break-out panels to expand functionality (Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)

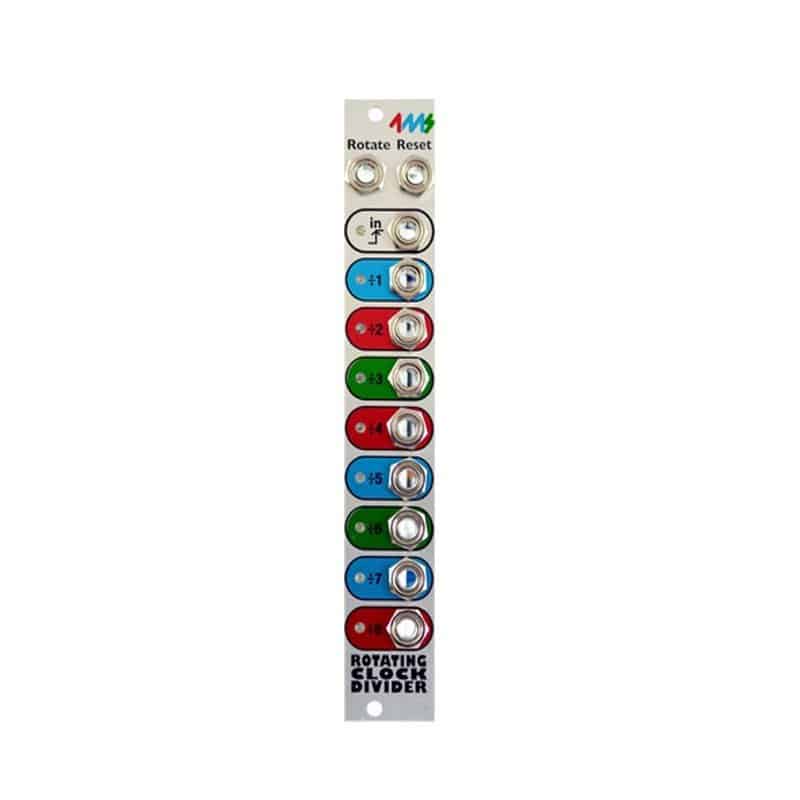

Jacks
Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
CV Rotate (0V to 5V input)
CV Reset (5V to 15V trigger)
Divided Clock Outputs (8 jacks):
Divide-by-(1 R)
Divide-by-(2 R)
Divide-by-(3 R)
Divide-by-(4 R)
Divide-by-(5 R)
Divide-by-(6 R)
Divide-by-(7 R)
Divide-by-(8 R)

…where R is the CV Rotation.
Selectable Gate/Trigger mode:

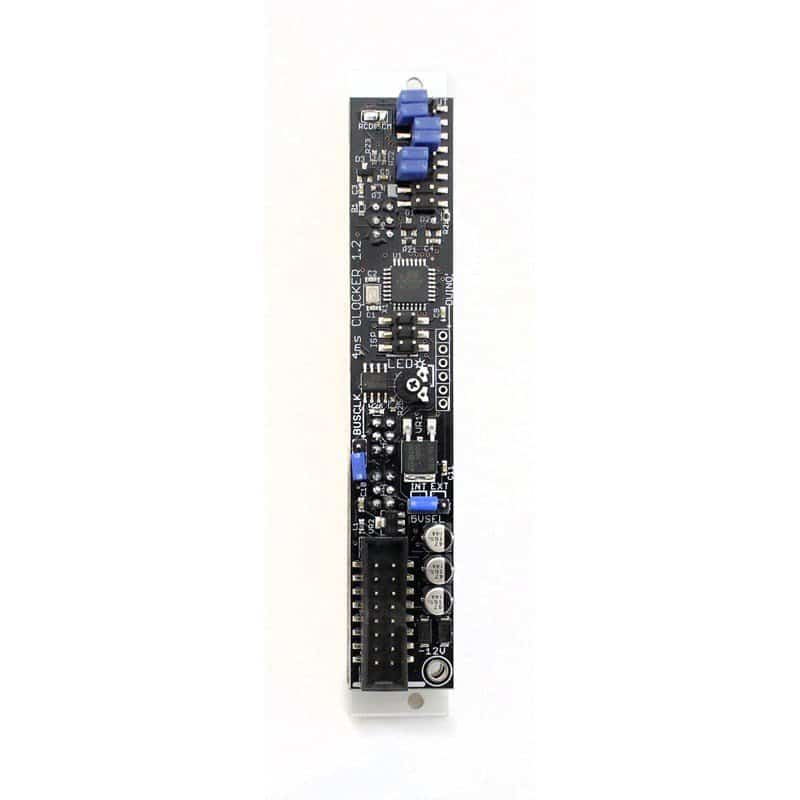

Selectable Divide range up to Divide-by-64:Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
Selectable Auto-reset:Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more « dance-able » even when using the « weird » clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.

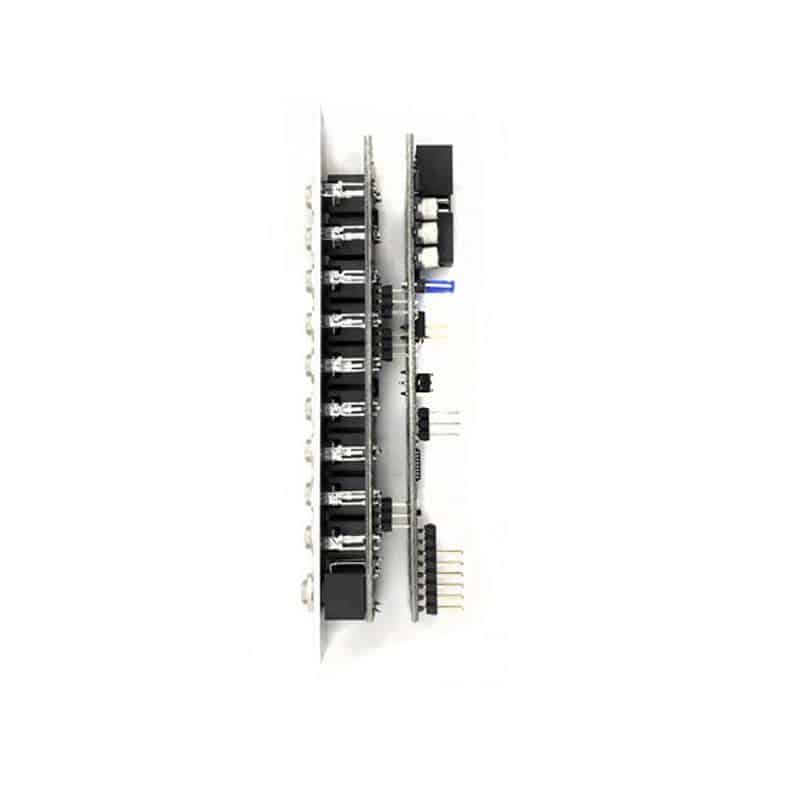

Module size: The RCD is 4HP and 35mm (1.39″) deep
Power consumption:
5VSEL Jumper set to INT:
33mA maximum power draw from 12V rail
0mA max on the 5V rail
4mA maximum power draw on the -12V rail

5VSEL Jumper set to EXT:
19mA maximum power draw on the 12V rail
14mA max on the 5V rail
4mA maximum power draw on the -12V rail
